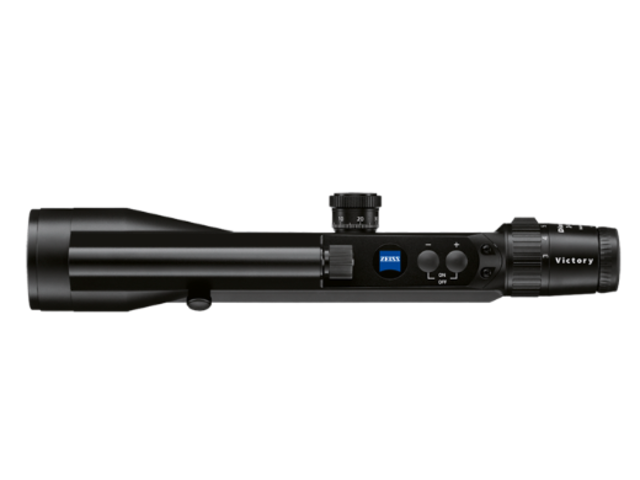

Zeiss Victory Diarange 3-12×56 T* Ret 60 Riflescope

Zeiss Victory Diarange 3-12×56 T* Ret 60 Riflescope The Zeiss Victory Diarange 3-12×56 brings you the specialist for high performance in twilight conditions: The bright high-contrast images allow shooting to continue to the very last light. Together with a precision rifle and high quality ammunition this makes it an extremely accurate product for guaranteed hunting success. The Zeiss Victory Diarange 3-12×56 combine the features of a premium riflescope with the innovative technology of a laser rangefinder: Sighting measuring and aiming merge into a single process. The distance measurement gives you the distance from your target accurately and extremely quickly. This information so vital for long-range shooting can be used to set the bullet drop compensator which is particularly useful for bullet drop compensation over longer distances. This guarantees successful hunting even under extreme conditions. The Victory Diarange riflescopes are unique thanks to their technology and high performance optics and represent the expertise of Carl Zeiss. Integrated rangefinding Hunting at long distance relies on determining distances quickly and accurately. After that you can correct the holdover or compensate for the bullet drop using the ASV. After just half a second the first exact distance measurement using an invisible infrared laser is carried out at just the touch of a button. The result of this quick yet precise measurement is displayed for 3 seconds creating the perfect basis for a long-range shot. High performance optics The Zeiss Victory Diarange 3-12×56 has high performance glasses and high performance T* multi-layer coating give you a clear bright and impressively detailed image. The rangefinder also operates without any loss of light thanks to the externally mounted laser which ensures unrestricted usability even in fading light. Intuitive operation The measurement is activated by gently squeezing the trigger in the shooting position. The measurement result is displayed immediately – gaining you valuable time. Equally intuitive is the adjustment of the brightness of the display and of the illuminated dot itself. They become a single unit with your high performance riflescope. Bullet drop compensation After measuring the distance you can transfer that information directly to the ASV in a simple operation. The successful long-range shooting solution from Carl Zeiss provides precise bullet drop compensation for accurate aiming at all times. Reticle You can choose between three reticles in the 2nd image plane. The reticles in the 2nd image plane are a definitive advantage when changing the magnification. A reticle that stays the same size makes precision shooting possible since the reticle does not cover the target. Housing The stable aluminium housing and the mechanics are designed for extremely high shot stability. The interior is also filled with nitrogen which makes it resistant to condensation.
It is built for use in the harshest of conditions. You can rely on your glass anywhere in the world. Secure mounting The tried and tested ZEISS rail mount offers a wide range of mounting options to ensure robust and shock-proof mounting even on your hunting rifle. The rail mount system also avoids any adhesive residues as might be required with ring mounting. Zeiss Victory Diarange 3-12×56 Specifications Magnification 3 x 12 x
Effective Lens Diameter 44 mm 56 mm
Exit Pupil Diameter 14.7 mm 4.7 mm
Twilight Factors 8.5 25.9
Field of View at 100m 12.5 m 3.5 m
Subjective Viewing Angle 7.2 ° 2 °
Diopter Adjustment Range +2 | -4 dpt
Eye Relief 90 mm
Parallax-Free 100 m
Adjustment Range Height at 100m 140 cm
Adjustment Range Lateral at 100m 100 cm
Adjustment per Click at 100m 1 cm
Centre Tube Diameter 30 mm
Eye Piece Tube Diameter 45 mm
Objective Tube Diameter 62.5 mm
LotuTec® Yes
Nitrogen Filling yes
Water Resistance 400 mbar
Functional Temperature in °C -25 | +50 °C
Length 360 mm
Measuring Range in m 10 m – 999 m
Laser Class Class 1
Laser Wave Length 904 nm
Measuring Accuracy in m (+/-) 1 m
Measuring Accuracy in % (+/-) 0.5 %
Measuring Accuracy at 600 m
Measuring Duration 0.5 sec
Battery 1x3V CR 123A (CR 17345)
Battery Life at 20°C to 25°C (number of measurements) > 5.000
